When specifying agricultural bearings for your machinery, one decision matters most: should you use insert bearings or pillow block bearings? Both types power critical farm operations—from tractor bearings to harvester bearings—but each excels in different conditions. Understanding those differences helps you reduce downtime and extend equipment life.

Wuxi Guangqiang Bearing Trade Co., Ltd. (GQZ) has manufactured OEM agricultural bearings since 1989. Our ISO9001-certified production line delivers sealed agricultural bearings to over 100,000 customers globally, with 60–70% of output exported. As a leading China agricultural bearings manufacturer, we offer competitive agricultural bearing price and wholesale options backed by 35+ years of expertise.

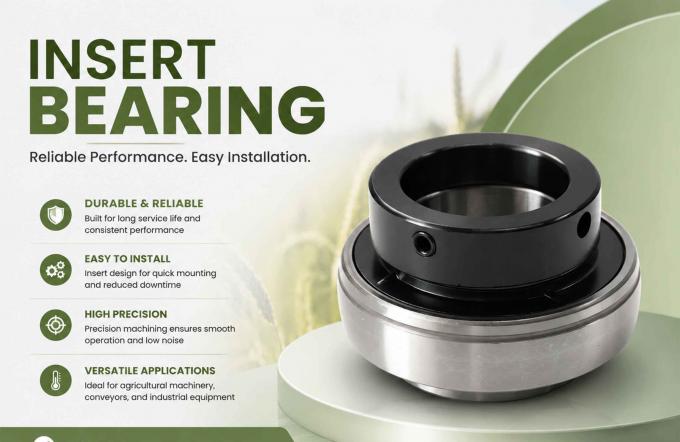

Insert bearings—commonly called UC bearing agricultural units—feature a spherical outer diameter that fits directly into a matching housing. The square bore insert bearing variant includes an extended inner ring with set screws or an eccentric locking collar.

• Fast mounting and removal — critical for seasonal maintenance of tillage equipment bearings
• Self-aligning capability — compensates for shaft misalignment common in plow disc bearings and disc harrows
• Compact, integrated design — ideal for grain conveyor bearings and seeding machines
• Maintenance-free, greased for life — triple-lip seals keep contaminants out, no re-lubrication needed

The GQZ agricultural insert bearings range spans from compact IL20-75 series (94mm OD, 20mm bore — ideal for seeding machines) to heavy-duty Lemken 55510016 units (235mm OD, 40mm bore, 71.19kN dynamic load rating) purpose-built for large disc harrows.

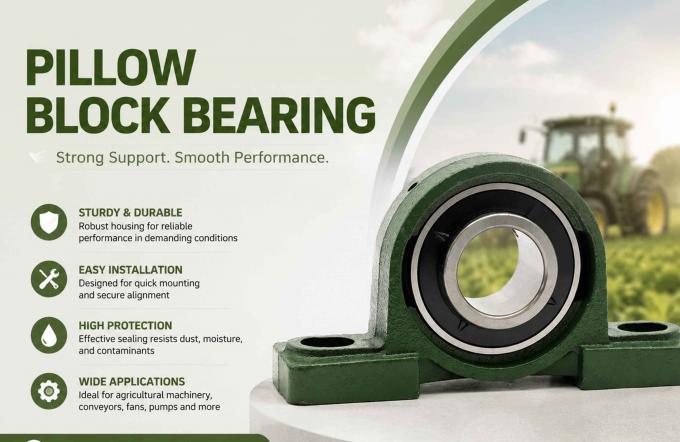

Pillow block bearings—also known as UCP pillow block bearing units or plummer block bearings—enclose a bearing inside a cast iron or pressed steel housing that bolts directly to the machine frame. This mounted ball bearing agriculture design distributes forces across a wide mounting surface.

• Superior load distribution — the flanged bearing housing handles high radial loads on baler bearings and tractor PTO shafts
• Bolt-down stability — reduces vibration-induced wear on heavy duty agricultural bearings
• Simplified alignment — housing pre-aligns the bearing, cutting installation time
• Versatile mounting orientations — adapts to horizontal, vertical, and inclined shaft configurations

Browse the full GQZ   for configurations matching your equipment's mounting requirements.

Insert bearings are the preferred choice for disc harrows. Their spherical outer diameter provides self-alignment that compensates for frame flex and soil impact. Additionally, sealed agricultural bearings in the insert configuration are maintenance-free and greased for life—critical when equipment operates far from service facilities. GQZ's Agri Hub series, cross-referenced to SKF BAA and NSK AHU standards, delivers dynamic load ratings from 22kN to 72kN, covering disc diameters from 350mm to 736mm.

Yes. Pillow block bearings excel in high-vibration applications like baler bearings, grain augers, and stationary processing equipment. The bolt-down UCP pillow block bearing housing provides rigid mounting that resists vibration loosening. For harsh conditions, select dust proof bearings agriculture variants with additional shielding or corrosion resistant farm bearings with coated housings. GQZ supplies high load capacity bearings for farming in both standard and heavy-duty grades.

GQZ maintains a comprehensive cross-reference database covering SKF BAA series, NSK AHU series, Lemken, Vaderstad, Amazone, Horsch, Pottinger, and Kuhn OEM part numbers. Submit your existing part number to our engineering team for a direct replacement quote. Our OEM agricultural bearings match or exceed original specifications at a competitive agricultural bearing price.

1. Identify Your Equipment: Rotary tools (disc harrows, rotary tillers) typically call for insert bearings. Conveyors and stationary drives work best with pillow block bearings.
2. Check Load Ratings: Match your bearing basic dynamic load rating to the machine's requirements. GQZ's high load capacity bearings for farming range from 22kN to 72kN.
3. Consider Maintenance Access: For remote field equipment, choose maintenance-free agricultural bearings (insert type, greased for life) to eliminate service intervals.
4. Verify OEM Compatibility: Cross-reference your existing part number. Contact GQZ for OEM agricultural bearings that match SKF, NSK, and other major brands.
5. Assess Operating Environment: See the installation and environment guide below for specialized recommendations.

Proper installation is as important as bearing selection. Follow these guidelines to maximize the service life of your agricultural bearings:

• Clean the shaft and housing bore before mounting. Dirt trapped during installation causes premature wear even on dust proof bearings agriculture designs.
• Torque set screws evenly on square bore insert bearing units. Uneven tightening creates shaft stress points and accelerates fatigue.
• Check alignment after the first 50 operating hours. New equipment settles during break-in, and early alignment correction prevents long-term damage.
• Do not over-pack with grease. For pillow block bearings with re-lubrication points, add grease slowly while the shaft rotates. Stop when you feel back pressure.
• Inspect seals monthly during peak farming seasons. Replace any sealed agricultural bearings showing cracked or hardened seals immediately.

Agricultural machinery operates in some of the toughest conditions any bearing will face. Here is how to protect your investment:

• Muddy fields (rice paddies, wet clay soils): Choose triple-lip sealed insert bearings over open-housing designs. The labyrinth seal effect prevents slurry ingress. GQZ corrosion resistant farm bearings add an extra layer of protection with coated rings and stainless steel options available on request.
• Dusty conditions (harvesting, dry tillage): Dust proof bearings agriculture with contact seals outperform shielded bearings in particulate-heavy air. Pillow block units should specify double-sealed inserts—not just shielded.
• Temperature extremes: Standard agricultural bearings from GQZ use high-temperature grease rated from -20C to +120C. For subarctic or desert operations, contact us for specialized grease fill specifications.
• Fertilizer and chemical exposure: NPK fertilizers and pesticides are corrosive. Select corrosion resistant farm bearings with nitrile seals and coated external surfaces. Schedule visual inspections after each chemical application pass.
• Storage between seasons: Rotate shafts monthly during off-season storage. This redistributes grease inside sealed agricultural bearings and prevents false brinelling—a common cause of bearing failure after long idle periods.

For over 35 years, Wuxi Guangqiang Bearing has served as a trusted agricultural bearings supplier to distributors, OEMs, and farm equipment wholesalers worldwide:

• Comprehensive cross-reference database — direct replacements for SKF BAA, NSK AHU, and major European OEMs including Lemken, Vaderstad, and Amazone
• Competitive wholesale pricing — factory-direct agricultural bearing price with volume discounts for wholesale farm equipment bearings
• ISO9001 and ROHS certified — consistent quality, traceable from raw material to final inspection
• Flexible OEM and private-label service — custom branding, packaging, and technical documentation
• MOQ starting at 5 pieces — trial orders welcome alongside bulk shipments
• Monthly capacity exceeding 10,000 units — reliable supply chain for global distribution partners

Searching for the best bearings for agricultural machinery at a competitive price? Contact our team at ball-rollerbearing.com for technical support, cross-referencing, and a personalized quotation.
